CICADA SWIR multispectral camera

CICADA Camera - 1.3MP
SWIR SPECTRAL RANGE
Snapshot Multispectral Camera

1100-1700nm spectral range

9 spectral bands

5 microns pitch
1.3MP raw resolution

USB 3.0

HIGH SPATIAL RESOLUTION FOR YOUR SWIR MULTISPECTRAL IMAGING

High Resolution SWIR Multispectral Camera

The CICADA Multispectral camera is specially designed to allow high integration of SWIR multispectral systems in industry. This lightweight (70g) and very small footprint (34x38x35mm) camera splits the image into 9 spectral bands on the SWIR range (1100-1700nm). Made by hybridization of a custom Bayer-like mosaic filter on a commercial 1.3MP InGaAs Sensor, it allows extracting the spectrum on each point of the image with a high spatial resolution.

CICADA dimensions 2.png

38 mm

35 mm

34 mm

70 g

CICADA 1100-1700 nm

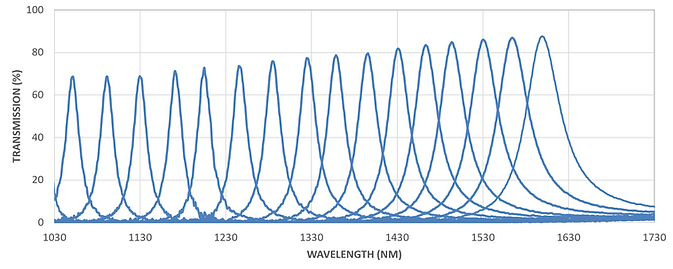

Typical CICADA filter transmission spectrum

CICADA Spectrum Filter.png

Specifications

Common

Array type

Optical Interface

Resolution (raw picture)

Resolution (spectral pictures)

Pixel pitch

Maximum frame rate

Exposure time range

ADC



Camera control

Digital output

Power supply

Dimension (W x H x L)

Weight (camera head)

USB 3.0

12-bit USB 3.0

USB 3.0

34 x 38 x 35 mm

70 g

InGaAs

CS-mount (C-mount compatible with additional C-ring)

1296 (H) x 1032 (V)

436 (H) x 334 (V)

5 μm

68 Hz (camera acquisition) / 68 Hz (COLOR SHADES Lab)

33 µs to 10 s

12-bit

Spectral Specifications

Typical Spectral Range

Number of bands

Bandwidth (FWHM avg)

1100 to 1600 nm

9

30 nm

Precision Farming

Drone Field Mapping

Software Development Kit (SDK)

COLOR SHADES® LAB is the SDK for the SILIOS multispectral cameras (CMS, CMS4, TOUCAN and ANT). It allows :

1) displaying the raw images, false color images, gray scale images or overlaid images with different indexation methods (such as "spectrum recognition"),

2) normalizing the spectral channels,

3) applying multispectral image corrections such as the crosstalk correction,

4) extracting the hypercubes.



COLOR SHADES® LAB runs with real time acquisition, but can also run with recorded single image or series of images (“replay mode”).

COLOR SHADES® LAB supports any of the SILIOS cameras and recognizes each plugged one via its S/N number. The specific spectral data of the corresponding multispectral sensor are then used for spectral corrections and treatments.

COLOR SHADES® LAB is supplied for free with any purchased multispectral CMS/CMS4 camera.

Boite logiciel Multispectral.png

COLOR SHADES ® LAB
